Grounding and Bonding Review Page

Click on Images to View Fullscreen

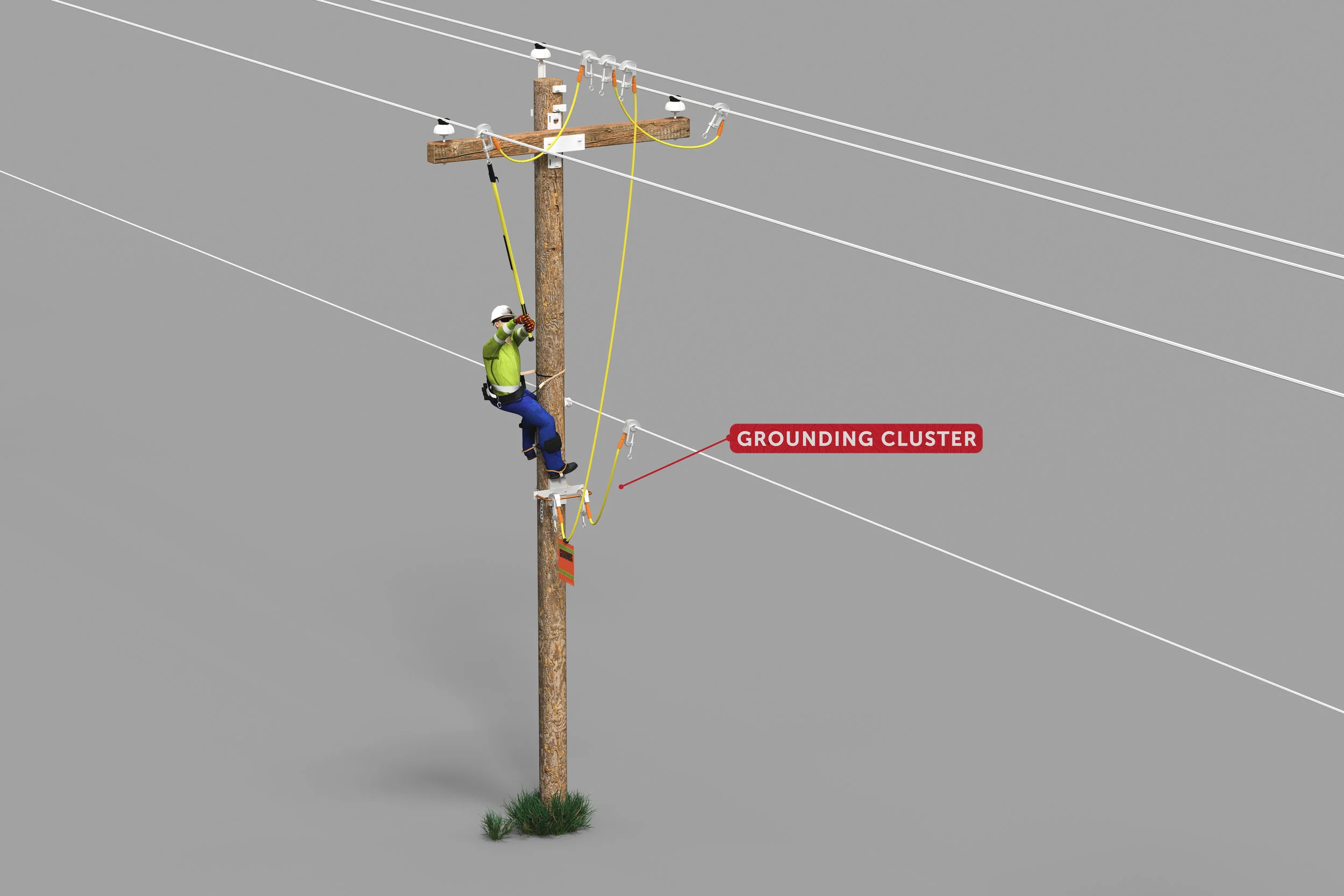

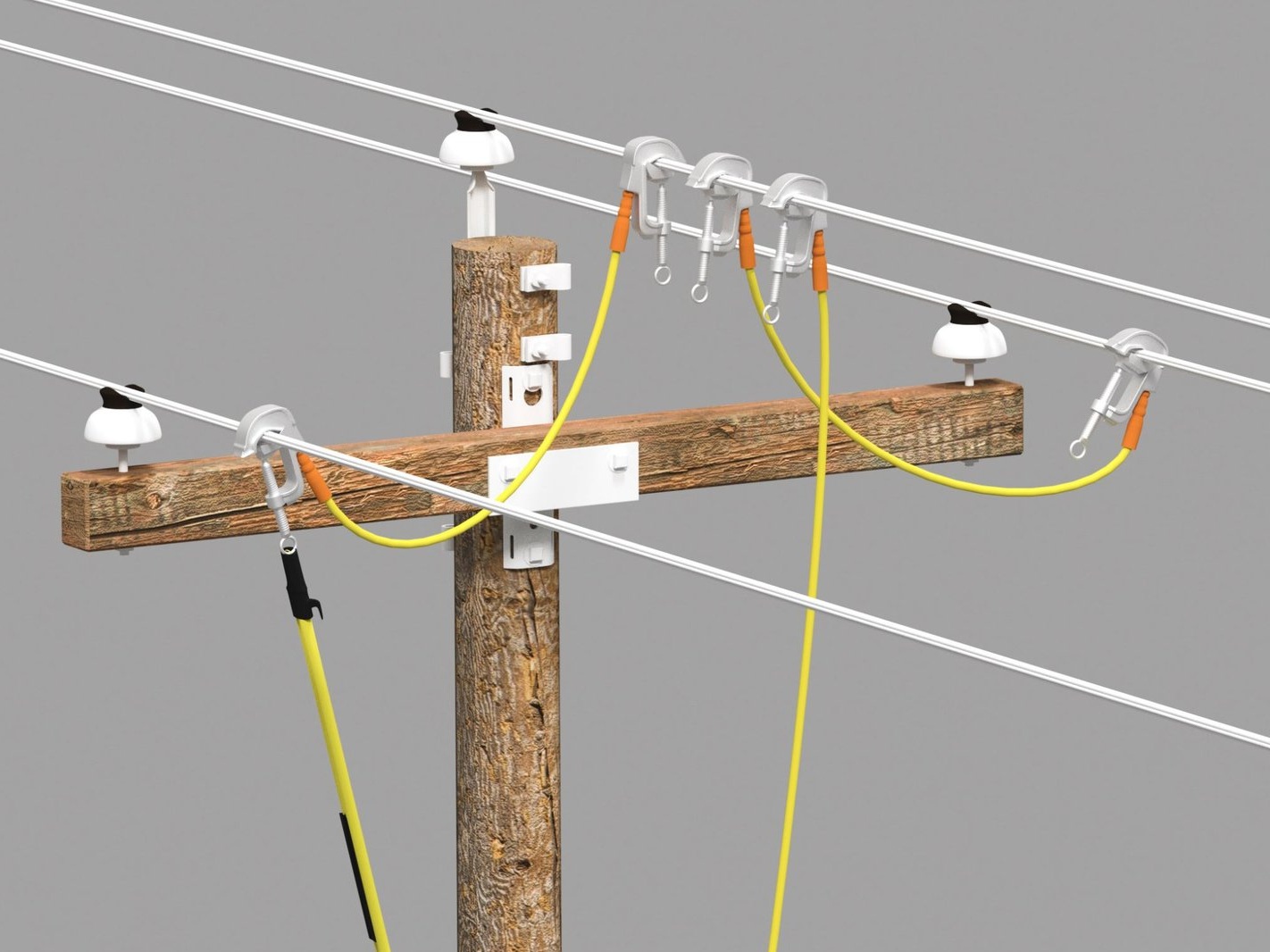

Master Set at Site (Neutral)



Notes: This grounding scenario can be used for equipotential grounds, master grounds, or as single point grounding at the work location.

Top ties will be added to the insulators throughout.

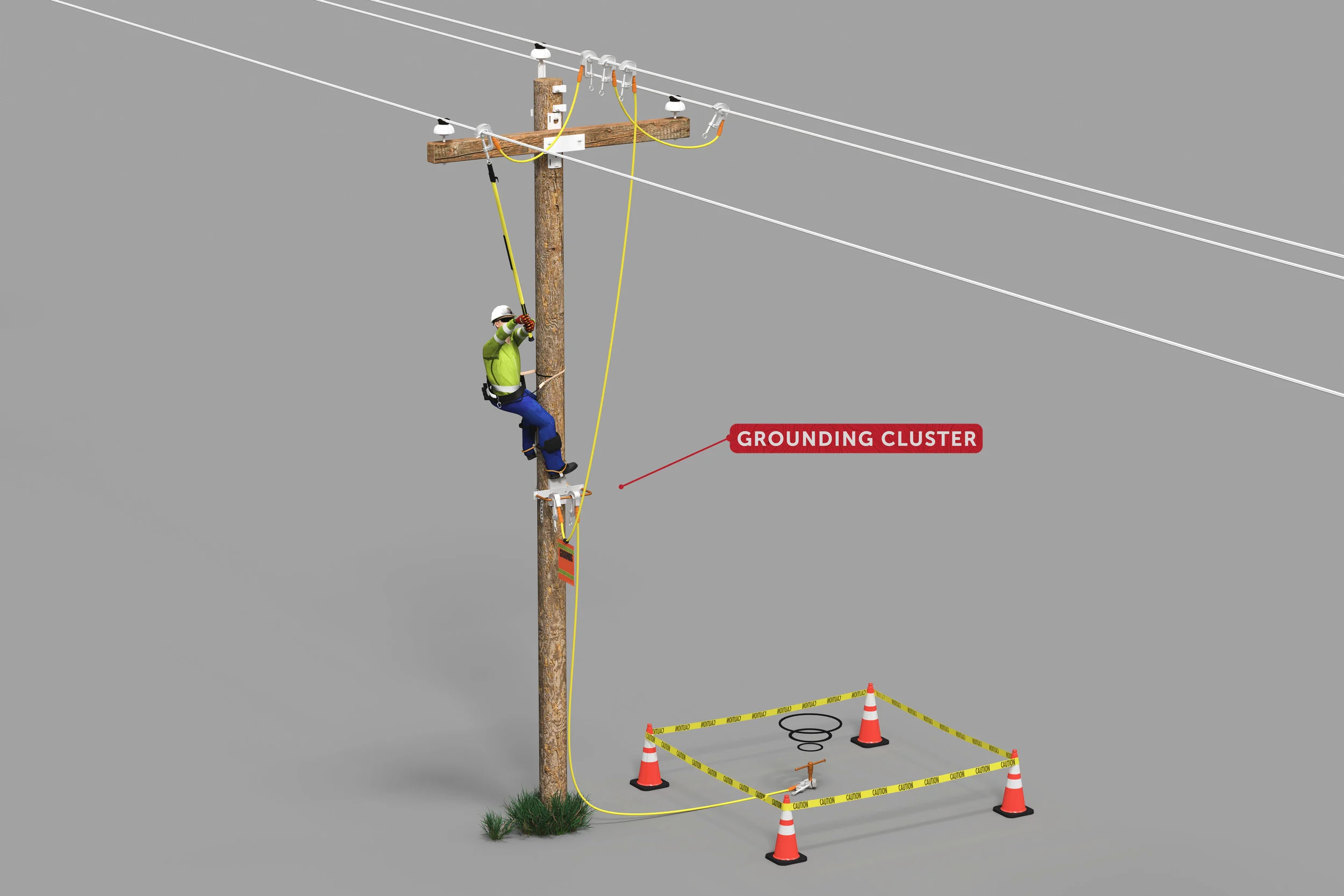

Master Set at Site (Temporary Ground Rod)



Notes: This grounding scenario can be used for equipotential grounds, master grounds, or as single point grounding at the work location. A temporary ground rod is needed when no neutral is present.

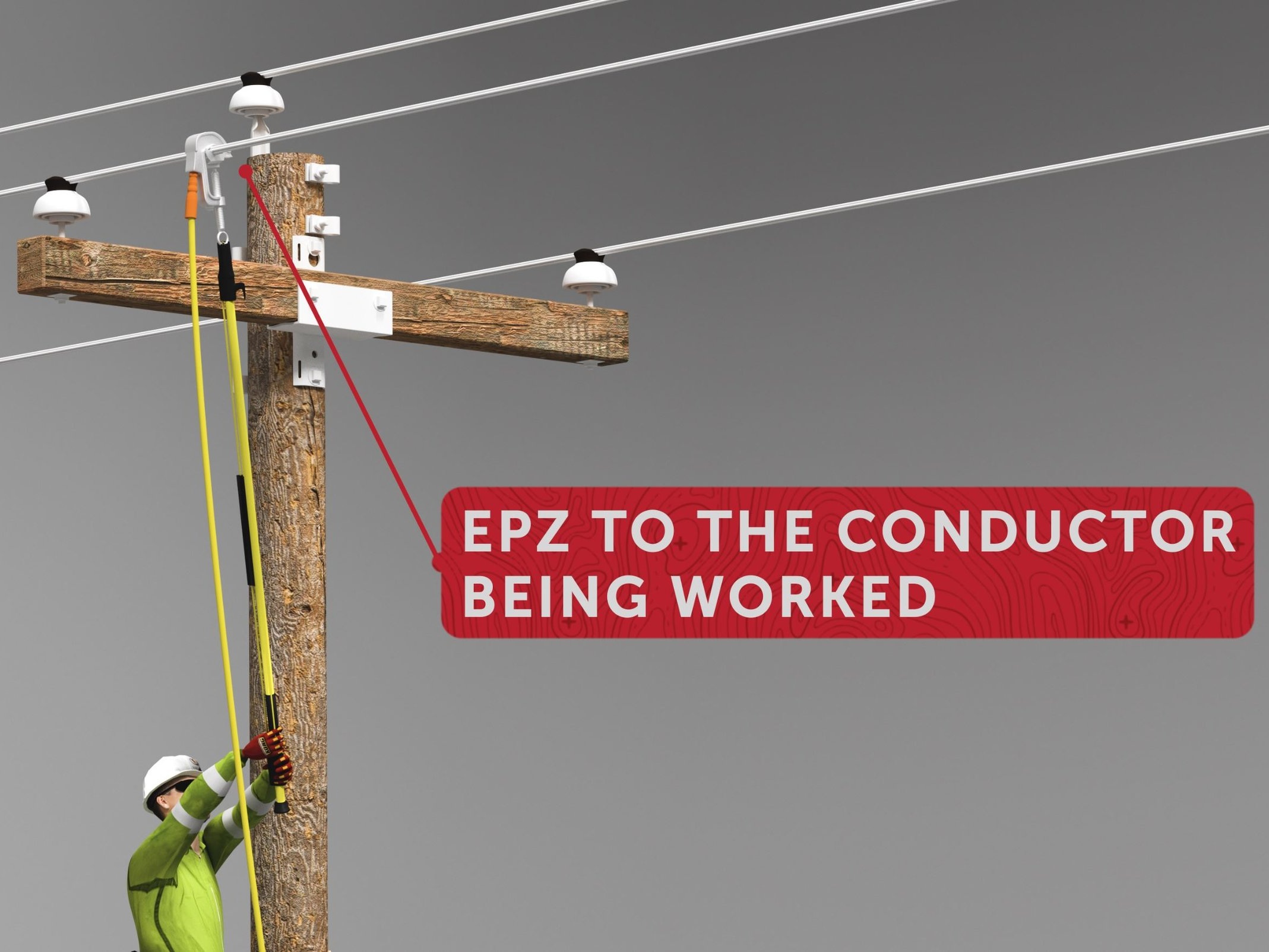

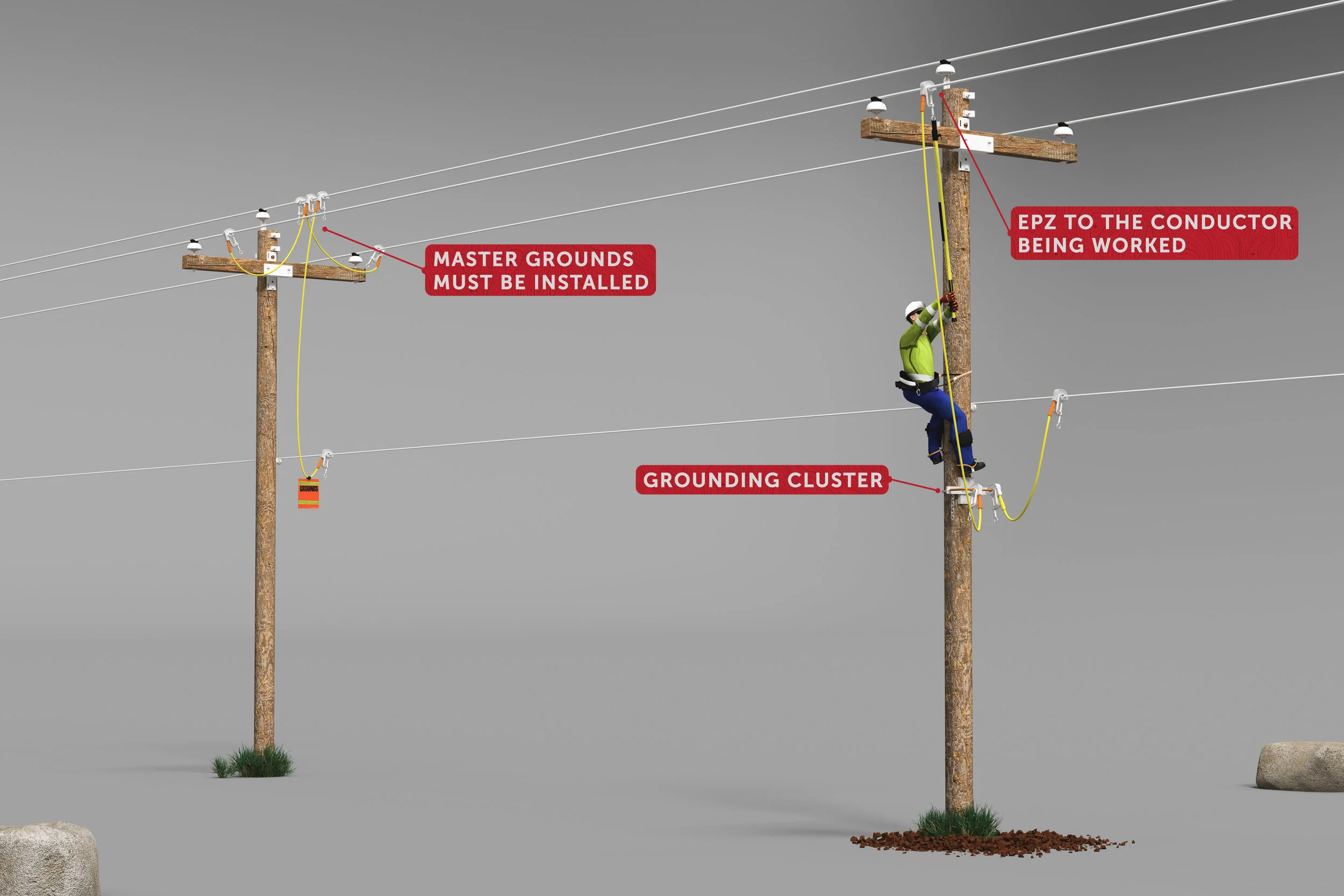

EPZ on Conductor Being Worked (Neutral)



The EPZ bond must be on the conductor being worked. Master grounds must be used in conjunction with the EPZ bonds.


EPZ on Conductor Being Worked (Temporary Ground Rod)



The EPZ bond must be on the conductor being worked. Master grounds must be used in conjunction with the EPZ bonds. A temporary ground rod is needed when no neutral is present.
