Wood H Structure Review Page

Click on Images to View Fullscreen

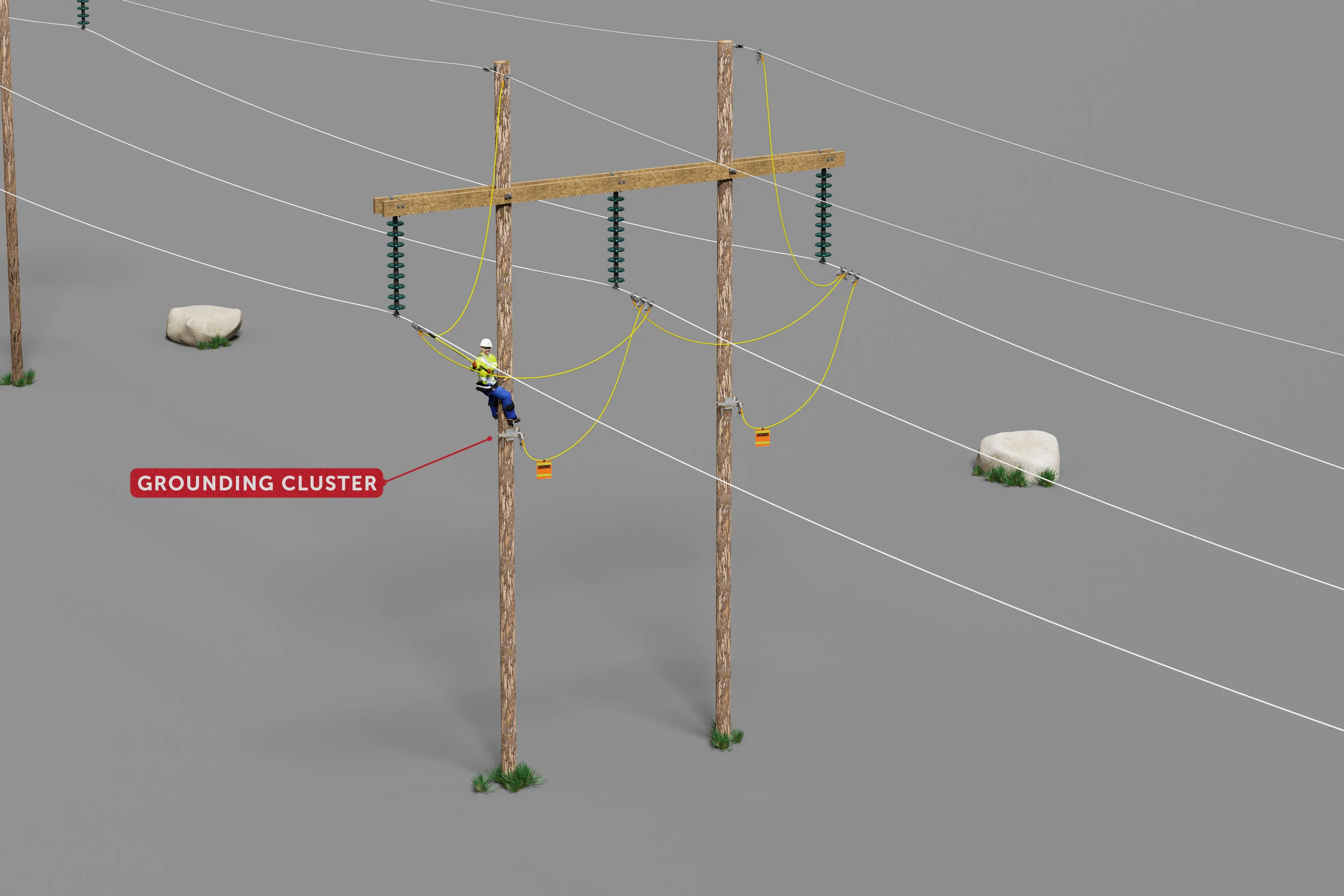

Master Set at Site (Grounding to Statics)

Notes: This grounding scenario can be used for equipotential grounds, master grounds, or as single point grounding at the work location.


Master Set at Site (TEMPORARY GROUND ROD)

Notes: This grounding scenario can be used for equipotential grounds, master grounds, or as single point grounding at the work location. A temporary ground rod is needed when no neutral is present.

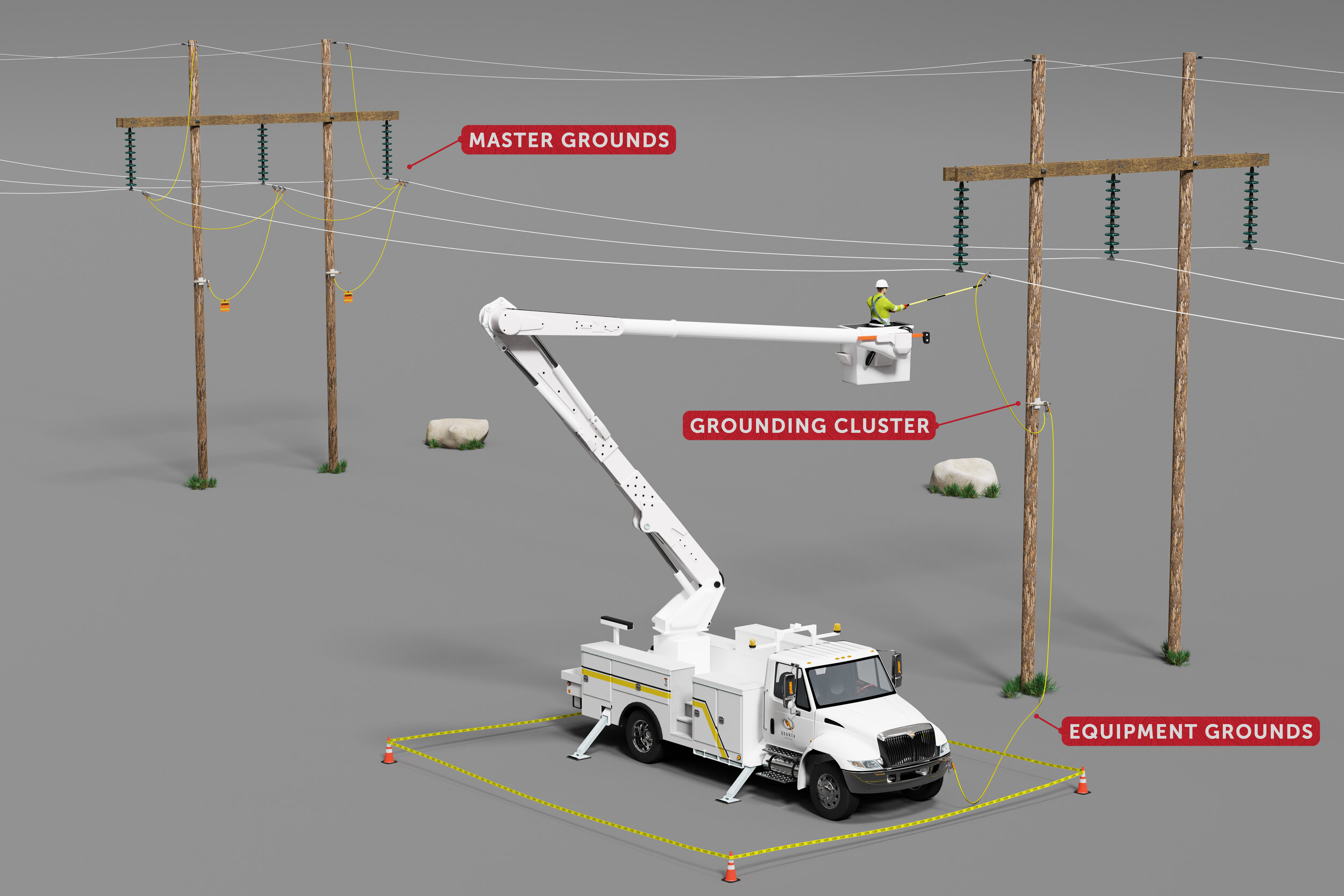

Insulated Aerial Lift (Grounding to Statics)

The EPZ bond must be on the conductor being worked. Master grounds must be used in conjunction with the EPZ bonds.


Insulated Aerial Lift (TEMPORARY GROUND ROD)

The EPZ bond must be on the conductor being worked. Master grounds must be used in conjunction with the EPZ bonds. A temporary ground rod is needed when no neutral is present.

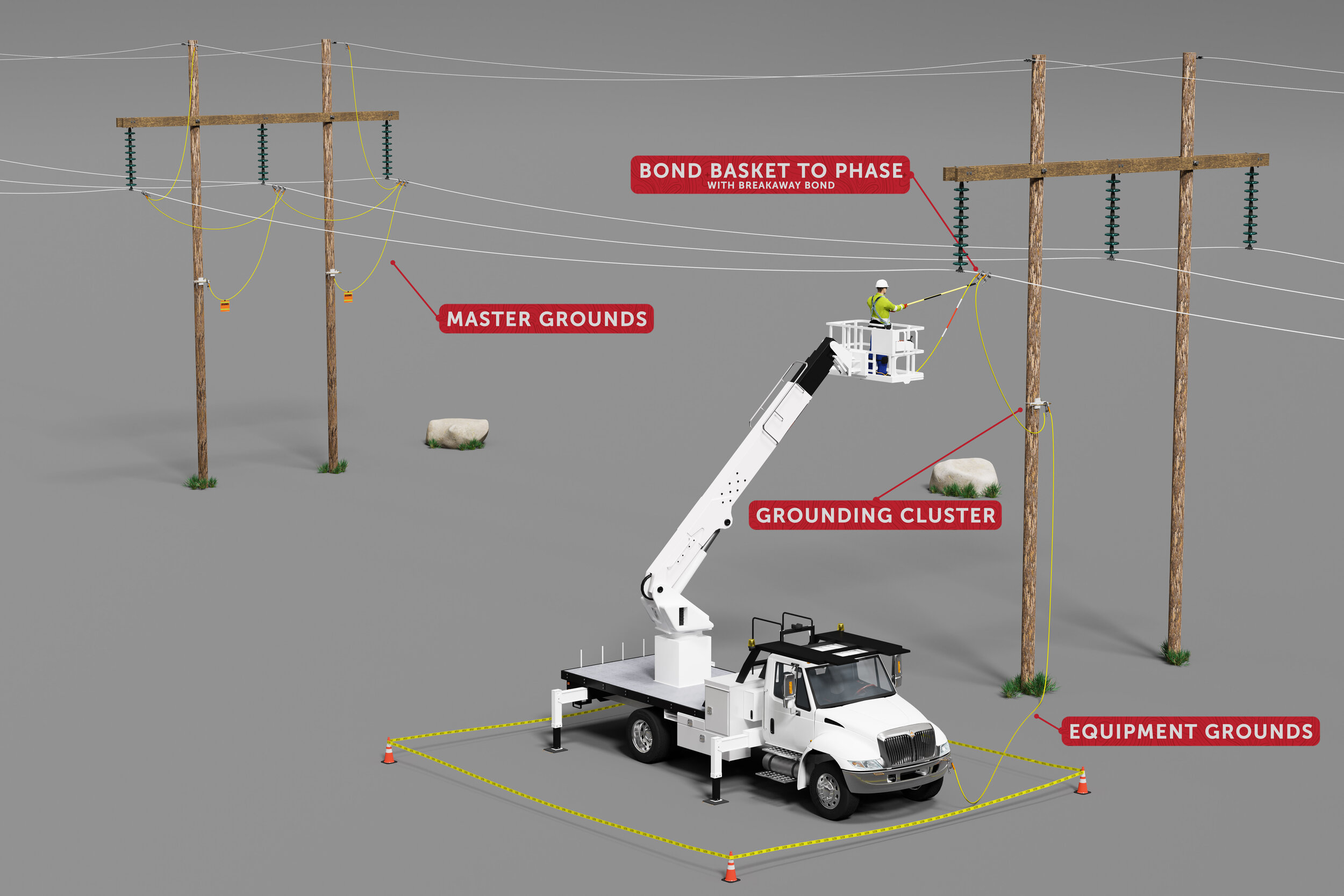

Non-Insulated Aerial Lift (Grounding to Statics)

The EPZ bond must be on the conductor being worked. Master grounds must be used in conjunction with the EPZ bonds.

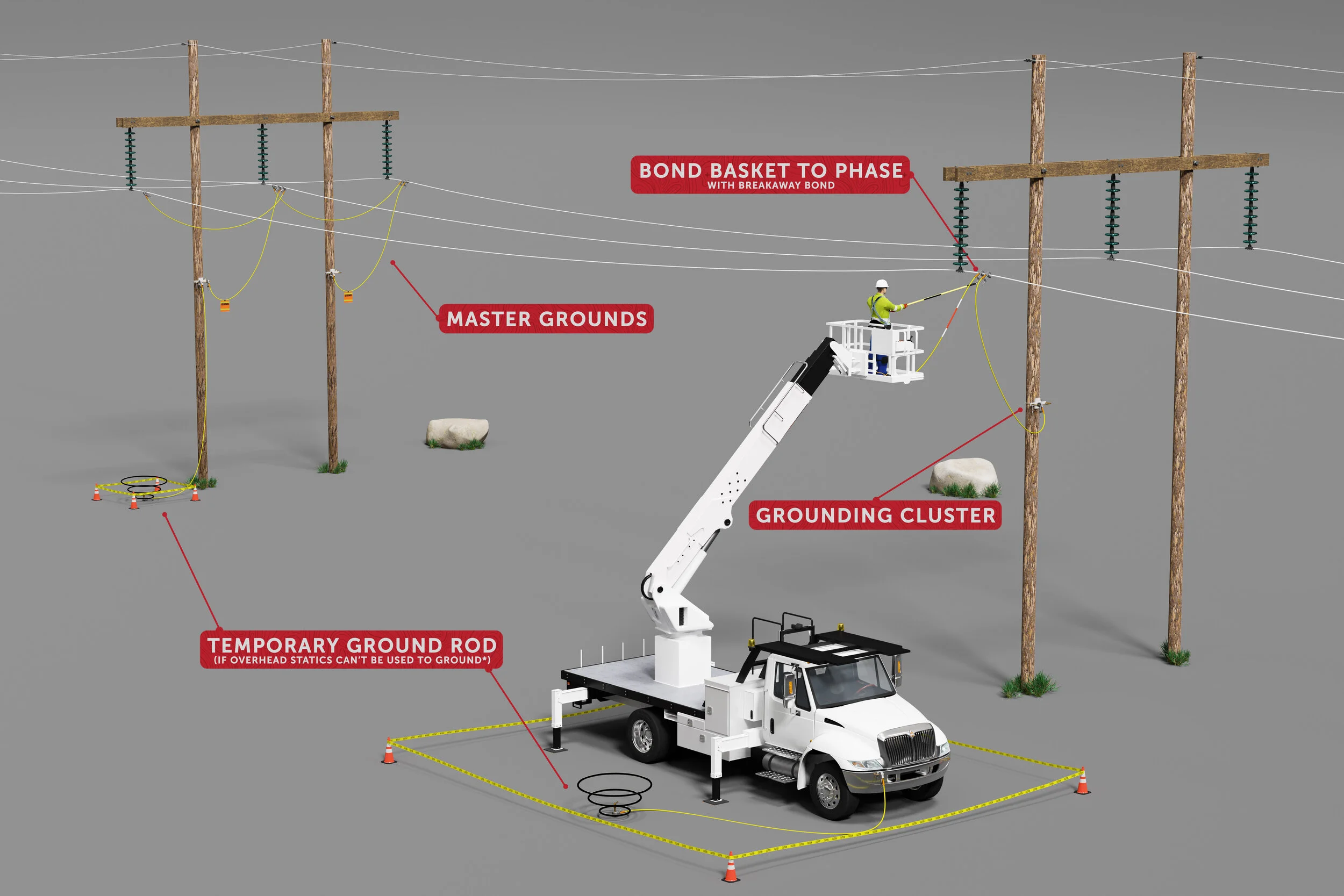

Non-Insulated Aerial Lift (TEMPORARY GROUND ROD)

The EPZ bond must be on the conductor being worked. Master grounds must be used in conjunction with the EPZ bonds. A temporary ground rod is needed when no neutral is present.
